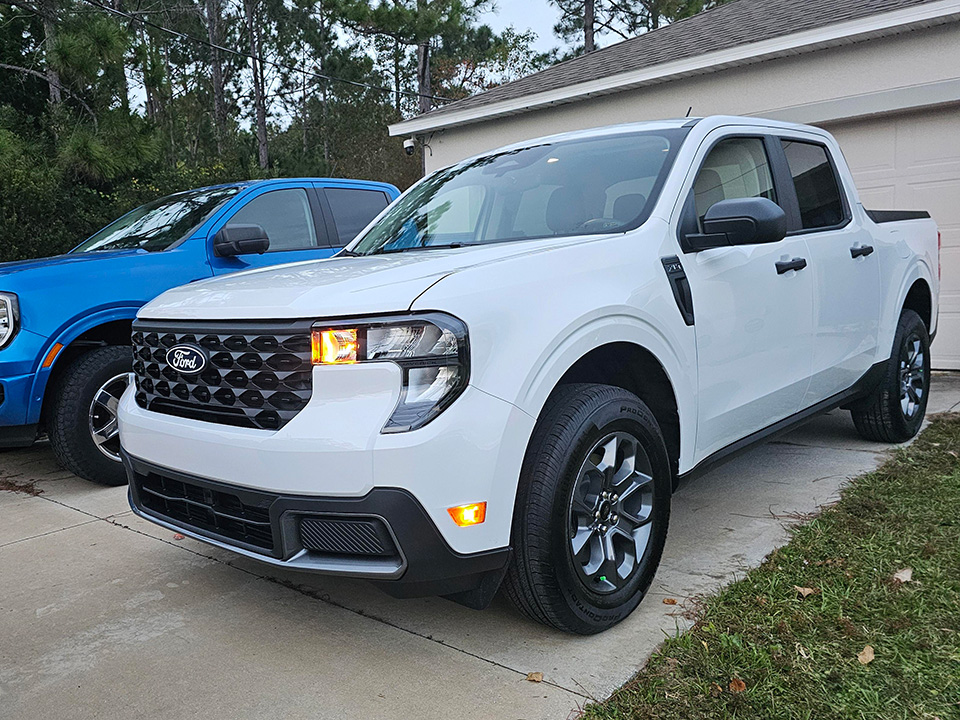

Matt's 2025 Ford Maverick XLT Hybrid
Information
| VIN | 3FTTW8H36SRB66499 |
|---|---|
| Build Date | |
| Purchase Date | 2025-11-26 |
| Color | Oxford White |
| Engine | 2.5L 191HP 155lb-ft FHEV I4 & 94kW 173lb-ft Permanent magnet electric traction |
| Transmission | PowerSplit Electronic continuously variable |
| Fuel Tank | 52.2 L / 13.8 gal |
| Axle | 3.37 rear axle ratio |
| Suspension | Front: Independent MacPherson strut-type with coil springs, twin-tube hydraulic gas-pressurized shocks, stabilizer bars, aluminum lower control arm, steel sub-frame and cast knuckle. Rear: Independent twistbeam with integrated stabilizer bar, Ford-patented “force vectoring" springs, twin-tube hydraulic gas-pressurized dampers. |
| Wheels | 17" Carbonized Gray-painted Aluminum |
| Tires | 225/65R17 A/S BSW |
| Miles per Year | Insufficient data |
Parts & Capacities
| Lug Nuts | |
|---|---|
| Oil | 5.4 L / 1.4 gal / 5.7 qt 0W-20 Motorcraft FL-910-S filter |
| Coolant | Low-temp circuit: 4.7L High-temp circuit: 9.1L Motorcraft Yellow Prediluted |
| Air Filter | Motorcraft FA-1948 engine, Motorcraft FP-100-A cabin |
| Fuel Filter | |
| Spark Plug | Motorcraft SP-530-X, 1.3 mm gap |
| PCV Valve | |
| Battery | |
| Drive Belt |
Dimensions
| Curb Weight | 1749 kg / 3855 lb |
|---|---|
| GVWR | 2413 kg / 5319 lb |
| GCWR | kg / 0 lb |
| Max Tow | 907 kg / 1999 lb |
| Length | 5074.92 mm / 199 in |
| Width | 1838.96 mm / 72 in |
| Height | 1747.52 mm / 68 in |
| Wheelbase | 3075.94 mm / 121 in |
| Ground Clearance | 205.74 mm / 8 in |
Maintenance Records
| Date | Mileage | Service | Notes |
|---|
